TCT Hole Saws

10X More Life Than Bi-Metal Holesaws

Manufactured with premium grade solid carbide tips for added strength and durability. More hard wearing and longer lasting than HSS hole saws.

  • Manufactured with premium grade solid carbide tips for added strength and durability.
  • More hard wearing and longer lasting than HSS hole saws.
  • Feature a spring loaded centre pilot drill, to locate the hole and eject the core of material after the cut.
  • Designed for use in a chuck – can be used with a magnetic drilling machine or a hand drill.
  • Available in sizes to suit PG type cable glands, making them ideal for electrical installations
  • Steel Fabrication Steel Fabrication
  • Vehicle Manufactuing & Maintenance Shops Vehicle Manufactuing & Maintenance Shops
  • Plumbing & Heating Engineers Plumbing & Heating Engineers
  • Electrical Engineers Electrical Engineers
ADD TO ORDER
Product brochure
Manual
Recommended Cutting Speeds
14 mm–150 mmØ
Size Range
14 mm–150 mmØ
5 mm, 25 mm & 50 mm
Cutting Depths
5 mm, 25 mm & 50 mm
>1400 N/ mm²
Max. Tensile Strength
>1400 N/ mm²
Structural steel, stainless steel, plastics, brass and copper
Perfect for:
Structural steel, stainless steel, plastics, brass and copper

Why the TCT Hole Saws Cutters?

Designed for use in a chuck – can be used with a magnetic drilling machine or a hand drill. Feature a spring loaded centre pilot drill, to locate the hole and eject the core of material after the cut.

ADD TO ORDER
Learn More
Turbo Tough™ TCT Hole Saw - 5 mm Turbo tough cutter

Turbo Tough™ TCT Hole Saw - 5 mm

Available in Diameters from 14 - 150 mm

Turbo Tough™ TCT Hole Saw - 25 mm Turbo tough cutter

Turbo Tough™ TCT Hole Saw - 25 mm

Available in Diameters from 14 - 150 mm

Turbo Tough™ TCT Hole Saw - 50 mm Turbo tough cutter

Turbo Tough™ TCT Hole Saw - 50 mm

Available in Diameters from 20 -150 mm

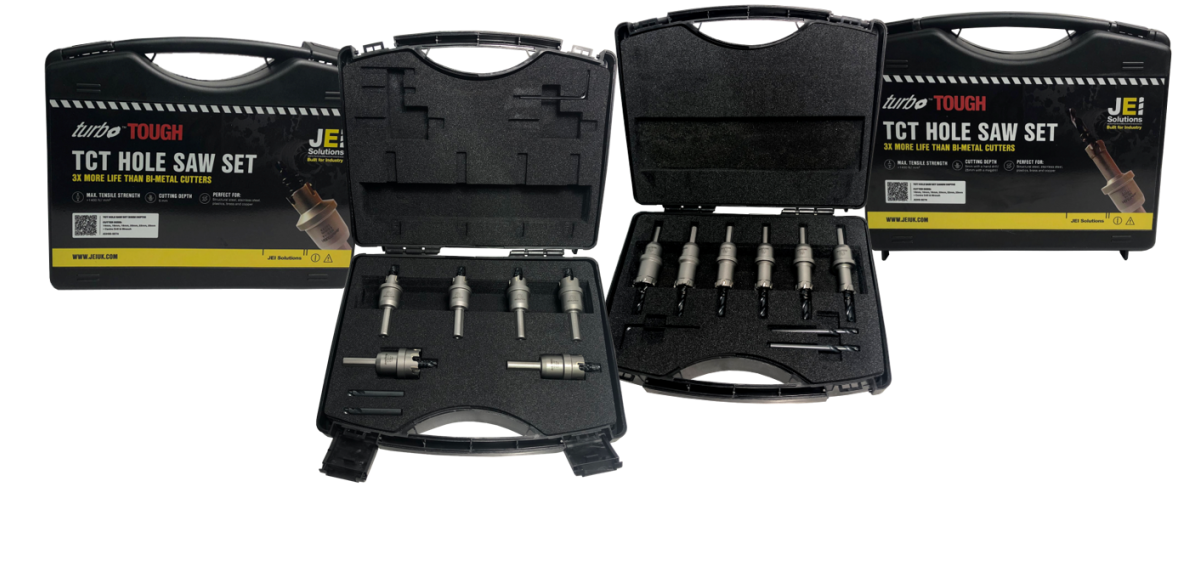

ALSO AVAILABLE AS A HANDY 6 PIECE KIT

Available in 5 mm and 25 mm Depth Options

6 PIECE TCT HOLE SAW SET - 5 MM Turbo tough cutter

6 PIECE TCT HOLE SAW SET - 5 MM

Part Number - JEIHXS-SET6

What's Included
6 PIECE TCT HOLE SAW SET - 25 MM Turbo tough cutter

6 PIECE TCT HOLE SAW SET - 25 MM

Part Number - JEIHS-SET6

What's Included
Dia. (mm) Steel ≤500 N/mm2 Steel ≤750 N/mm2 Steel ≤1000 N/mm2 Stainless Steel Aluminium Cast iron Bronze Copper/Tin Plastic/Plexiglas
14 1137 1023 864 455 2046 796 1137 796 909
15 1061 955 806 424 1910 743 1061 743 849
16 995 896 756 398 1791 696 995 697 796
17 937 843 712 375 1686 655 937 656 749
18 885 796 672 354 1592 619 885 619 707
19 838 754 637 335 1509 586 838 587 670
20 796 717 605 318 1433 557 796 557 637
21 758 682 576 303 1365 531 758 531 606
22 724 651 550 290 1303 506 724 507 579
23 692 623 526 277 1246 484 692 485 554
24 663 597 504 265 1194 464 663 464 531
25 637 573 484 255 1146 446 637 446 509
26 612 551 465 245 1102 428 612 429 490
27 590 531 448 236 1062 413 590 413 472
28 569 512 432 227 1024 398 569 398 455
29 549 494 417 220 988 384 549 384 439
30 531 478 403 212 955 371 531 372 424
31 514 462 390 205 925 359 514 360 411
32 498 448 378 199 896 348 498 348 398
33 483 434 367 193 869 338 483 338 386
34 468 422 356 187 843 328 468 328 374
35 455 409 346 182 819 318 455 318 364
36 442 398 336 177 796 309 442 310 354
37 430 387 327 172 775 301 430 301 344
38 419 377 318 168 754 293 419 293 335
39 408 367 310 163 735 286 408 286 326
40 398 358 303 159 717 279 398 279 318
41 388 350 295 155 699 272 388 272 311
42 379 341 288 152 682 265 379 265 303
43 370 333 281 148 667 259 370 259 296
44 362 326 275 145 651 253 362 253 289
45 354 318 269 142 637 248 354 248 283
46 346 312 263 138 623 242 346 242 277
47 339 305 257 136 610 237 339 237 271
48 332 299 252 133 597 232 332 232 265
49 325 292 247 130 585 227 325 227 260
50 318 287 242 127 573 223 318 223 255
51 312 281 237 125 562 218 312 219 250
52 306 276 233 122 551 214 306 214 245
53 300 270 228 120 541 210 300 210 240
54 295 265 224 118 531 206 295 206 236
55 290 261 220 116 521 203 290 203 231
56 284 256 216 114 512 199 284 199 227
57 279 251 212 112 503 195 279 196 223
58 275 247 209 110 494 192 275 192 220
59 270 243 205 108 486 189 270 189 216
60 265 239 202 106 478 186 265 186 212
61 261 235 198 104 470 183 261 183 209
62 257 231 195 103 462 180 257 180 205
63 253 227 192 101 455 177 253 177 202
64 249 224 189 100 448 174 249 174 199
65 245 220 186 98 441 171 245 171 196
66 241 217 183 97 434 169 241 169 193
67 238 214 181 95 428 166 238 166 190
68 234 211 178 94 422 164 234 164 187
69 231 208 175 92 415 161 231 162 185
70 227 205 173 91 409 159 227 159 182
71 224 202 170 90 404 157 224 157 179
72 221 199 168 88 398 155 221 155 177
73 218 196 166 87 393 153 218 153 174
74 215 194 164 86 387 151 215 151 172
75 212 191 161 85 382 149 212 149 170
76 210 189 159 84 377 147 210 147 168
77 207 186 157 83 372 145 207 145 165
78 204 184 155 82 367 143 204 143 163
79 202 181 153 81 363 141 202 141 161
80 199 179 151 80 358 139 199 139 159
81 197 177 149 79 354 138 197 138 157
82 194 175 148 78 350 136 194 136 155
83 192 173 146 77 345 134 192 134 153
84 190 171 144 76 341 133 190 133 152
85 187 169 142 75 337 131 187 131 150
86 185 167 141 74 333 130 185 130 148
87 183 165 139 73 329 128 183 128 146
88 181 163 138 72 326 127 181 127 145
89 179 161 136 72 322 125 179 125 143
90 177 159 134 71 318 124 177 124 141
91 175 157 133 70 315 122 175 122 140
92 173 156 132 69 312 121 173 121 138
93 171 154 130 68 308 120 171 120 137
94 169 152 129 68 305 119 169 119 135
95 168 151 127 67 302 117 168 117 134
96 166 149 126 66 299 116 166 116 133
97 164 148 125 66 295 115 164 115 131
98 162 146 123 65 292 114 162 114 130
99 161 145 122 64 290 113 161 113 129
100 159 143 121 64 287 111 159 111 127
105 152 136 115 61 273 106 152 106 121
110 145 130 110 58 260 101 145 101 116
115 138 125 105 55 249 97 138 97 111
120 133 119 101 53 239 93 133 93 106
130 122 110 93 49 220 86 122 86 98
140 114 102 86 45 205 80 114 80 91
150 106 95 81 42 191 74 106 74 85

Why the TCT Hole Saws?

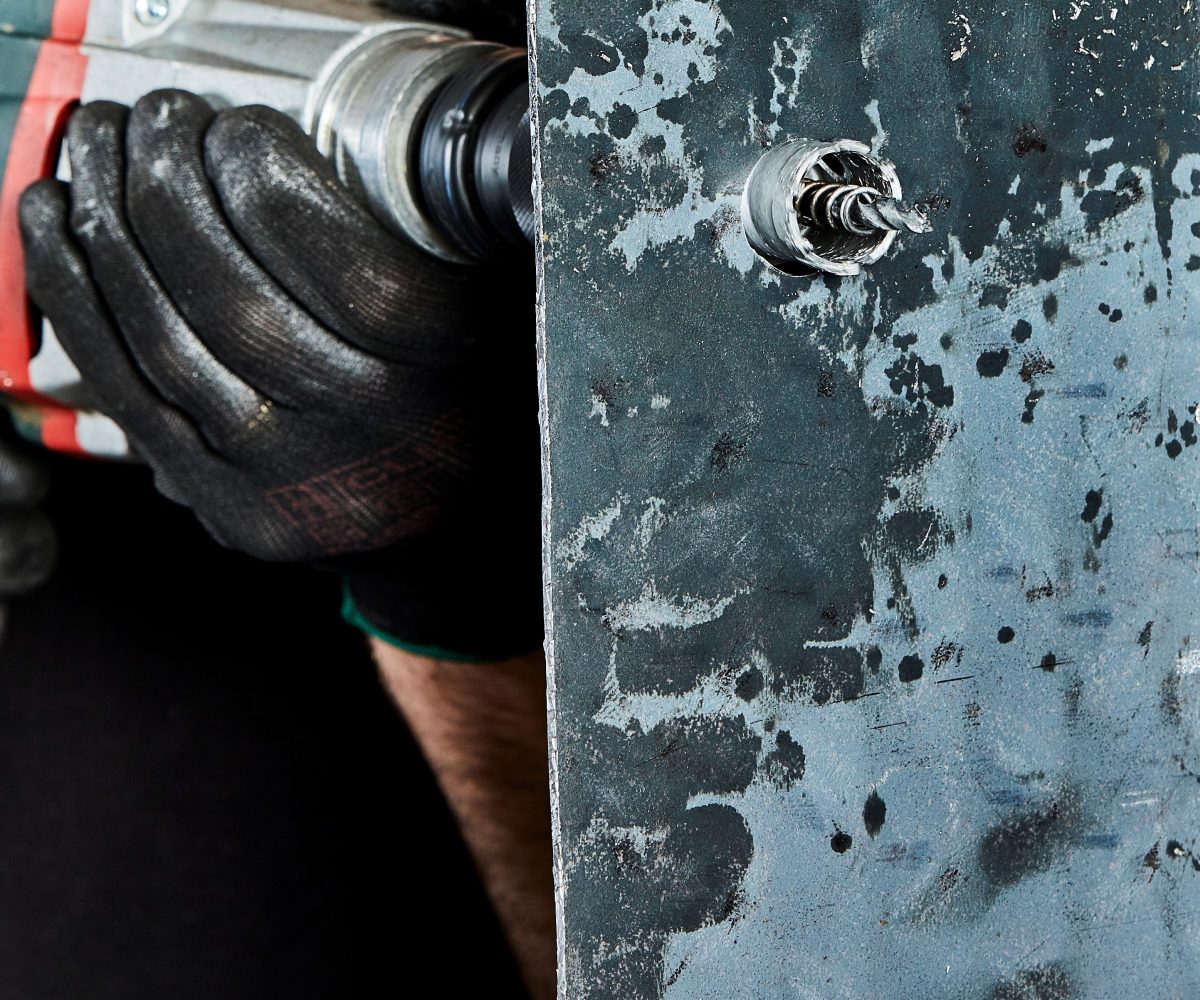

Use in a hand drill

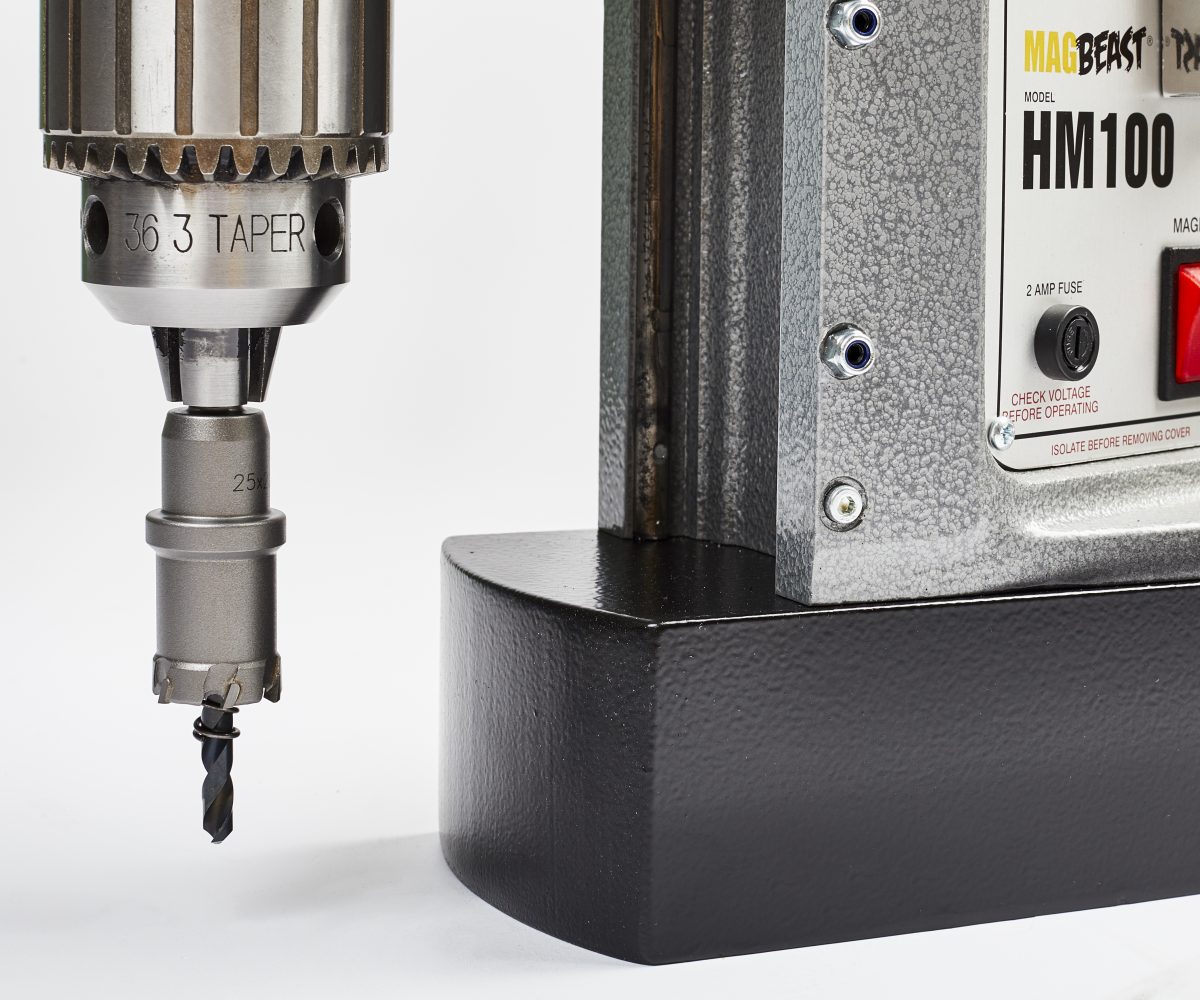

Use in a magnetic drilling machine

PG Gland

Can't find the size you require? Get in touch.

We can manufacture a range of cutters and machines to suit your requirement. No matter your requirement, contact us today and speak to our specialist team.
