MiniBeast™ RT

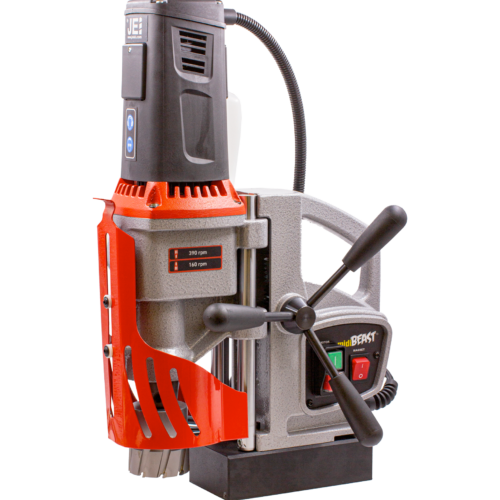

A compact and powerful magnetic drilling machine with a ratchet handle system, designed to enable simpler drilling.
- Extra compact operation only 110 mm* wide - providing the ability to use the machine in close corners of beams and upstands. *width without ratchet extension (provided but not necessary with most applications).
- Fast & convenient left or right hand sided lever operation. No tools required to remove pinion or handles, simply remove ratchet and change sides.
- Internal coolant reservoir - ensuring maximum cutter life.
- Self correcting slide rails - for maintenance free operation.
- Light-weight - only 10kg.
- Hidden motor cable - for added protection.
DOWNLOADS:
The MiniBeast™ RT offers an even more compact option to JEI's flagship MiniBeast™ magnetic drilling machine. With the use of a ratchet handle system, the machine can operate in more restricted spaces.
MiniBeast™ RTSPECIFICATIONS
| Model | MiniBeast™ RT |
| Weight | 10 kg |
| Cutter Capacity | 35mm Ø x 2" depth of cut |
| Twist Drill Capacity | 12 mm with optional Turbo™ twist drills |
| Motor | 1010 watts |
| Height Min/Max | 307 / 377 |
| Length | 260 mm |
| Width | 110 mm ((without guard or ratchet extension) |
| RPM | 1 Fixed Speed (no load 520 RPM, loaded 350 RPM) |
| Magnetic Base Dimensions | 160 mm x 80 mm |
| Magnet Deadlift (on 25mm plate) | 980 kg on 1" Plate (9600 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage / Part Number | 110 V - DRILL-19041/RT 240 V - DRILL-19042/RT |
| Shipping Weight | 13.3 kg |
| Shipping Dimensions | 490 mm x 380 mm x 190 mm |
Have an Existing MiniBeast™ Magdrill you would like to Upgrade?
Covert your existing standard MiniBeast™ magnetic drilling machine with our pinion and ratchet kit, available to purchase separately.
Part number - MINIBEAST-RHA
Learn More
Maximise the performance of your MiniBeast™ RT with our Turbo™ Tough TCT Cutter Range
Our cutters and tools are designed to be long-lasting, withstanding vigorous usage without compromising on performance or precision.
