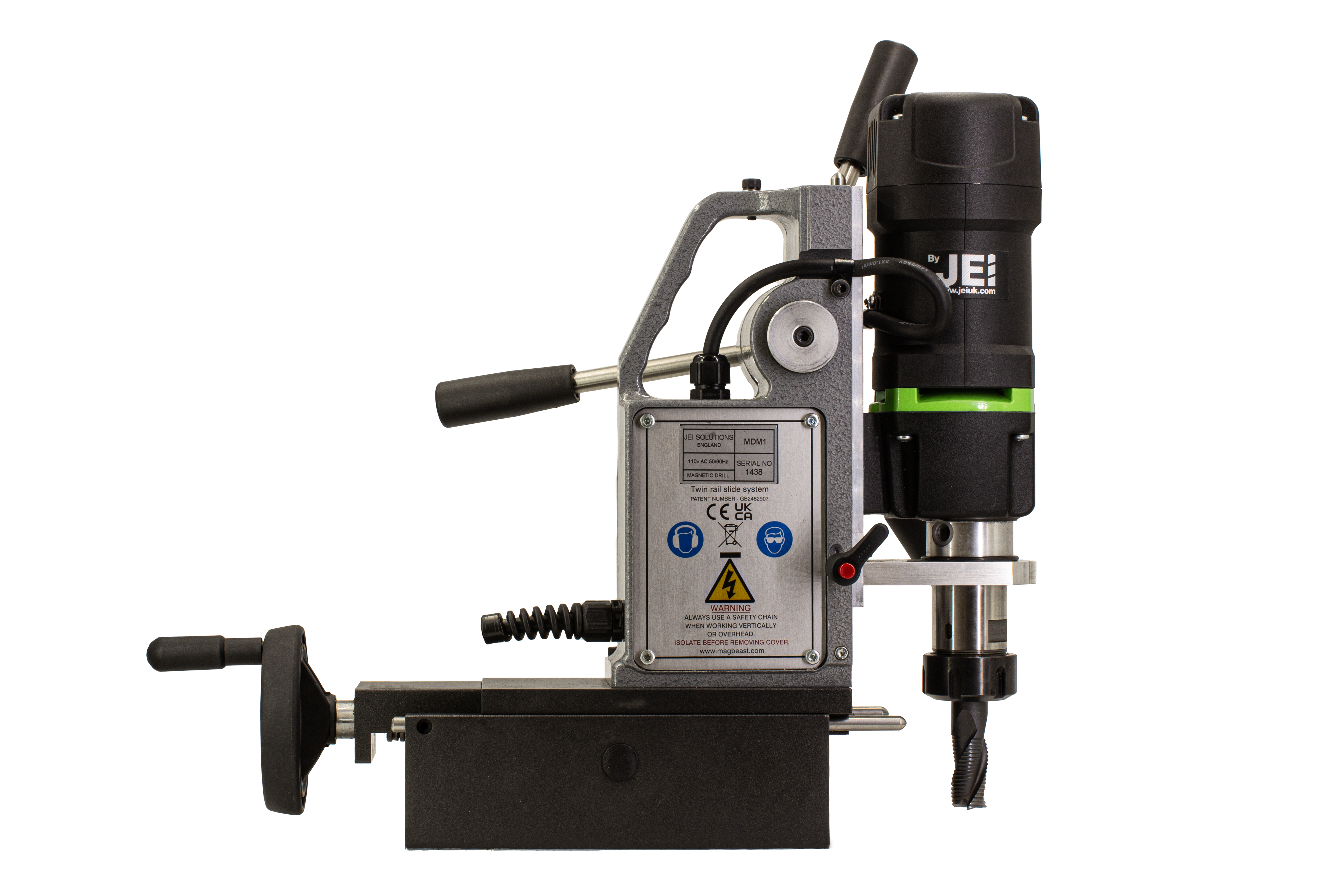

MAGSLOT™ 20X
PORTABLE MAGNETIC MILLING MACHINE
A unique solution for Milling holes in steel, on site, or in the workplace
- Horizonal Single axis feed, allowing 90mm of milling travel per operation. With patented slide rails to ensure minimal vibration and steady cut.
- Weighs only 20kg. Making it portable and convenient to bring to the workpiece in any position.
- Integrally fixed Milling collet chuck (size ER32). Conveniently accepts end mills between M3-M20 Ø.
- Optional additional 19mm shank Annular broach cutter holder. Converts machine to a magnetic drill to cut round holes up to 40mm Ø.
- Lockable downward motor slide. Fixes the milling tool to desired depth.
Available for hire!
DOWNLOADS:
The Magslot™ 20X by JEI is a unique, cutting-edge, compact, and lightweight tool that allows you to easily create slots and elongate holes in steel. Weighing in at only 20kg means it is portable and can be taken to the workpiece, magnetised into position, and used quickly and efficiently to make light work of difficult tasks.
MAGSLOT™ 20XSPECIFICATIONS
| Model | MAGSLOT 20X |
| Weight | 20 Kg |
| Motor Power | Motor Power 1100 w |
| RPM | 720 RPM (no load) 450 RPM (with load) |
| Milling chuck Type | ER32 |
| Endmill cutter range | M3 - M20 |
| Maximum horizontal (slot) feed in one pass | 90mm |
| Maximum vertical Travel | 190 mm |
| Maximum Core Cutter Capacity* (optional extra) | 40 mm Ø |
| Magnetic Holding power | 2500 kg on 1" Plate |
| Magnetic Base Dimensions L x W | 215 mm x 118 mm |
| Machine Dimensions L x W | 420 mm x 70 mm (including Spoke handles) |
| Vibration Level | < 2.5 m/s2 |
| Part no. 110v | JEI-MAGSL/1 |
| Part no. 240v | JEI-MAGSL/2 |
Want to make sure the MAGSLOT™ 20X is right for you? Speak to our specialist solutions team today.
