Magbeast HM200T (MagBeast® 5)
The world’s largest capacity portable magnetic drilling and tapping machine, designed to solve the most challenging of applications
- Commanding 2850W, high torque motor. Delivers maximum power to produce up to 200 mm Ø holes.
- Reversible with multi speeds.

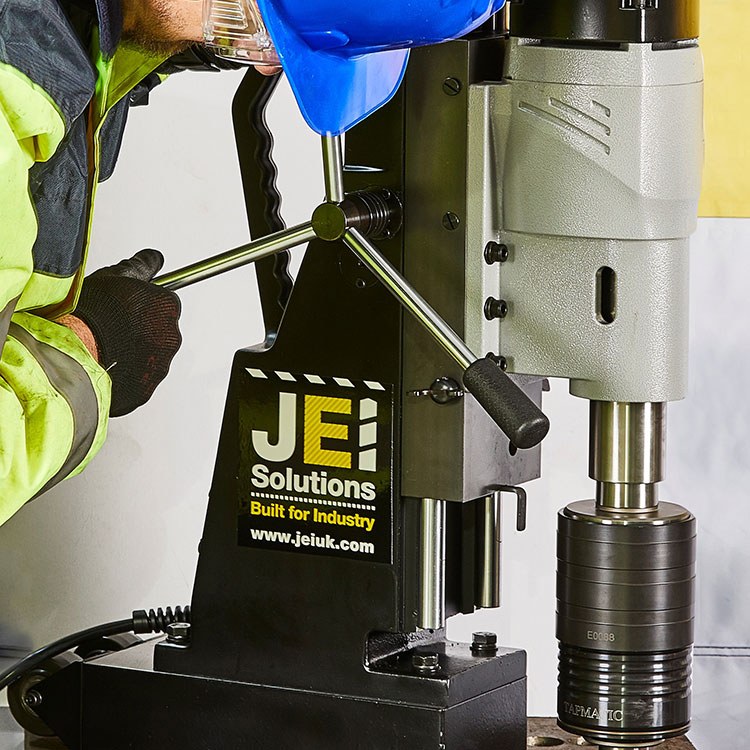

- Ability to tap holes up to M52.
- 455mm of drill travel. Can be adapted for many special projects.
- Optional single phase 110 V or 240 V operation. Can be used on any site environment.
- Twin slide rails. Ensuring maintenance free operation and minimum hole tolerance.
- Soft start motor switch.
- Protects motor and tool during start up operation.
- Overload and clutch control.
- Cuts out motor under excessive load, protecting tool, gearbox and motor against incidental damage.
Available for hire!

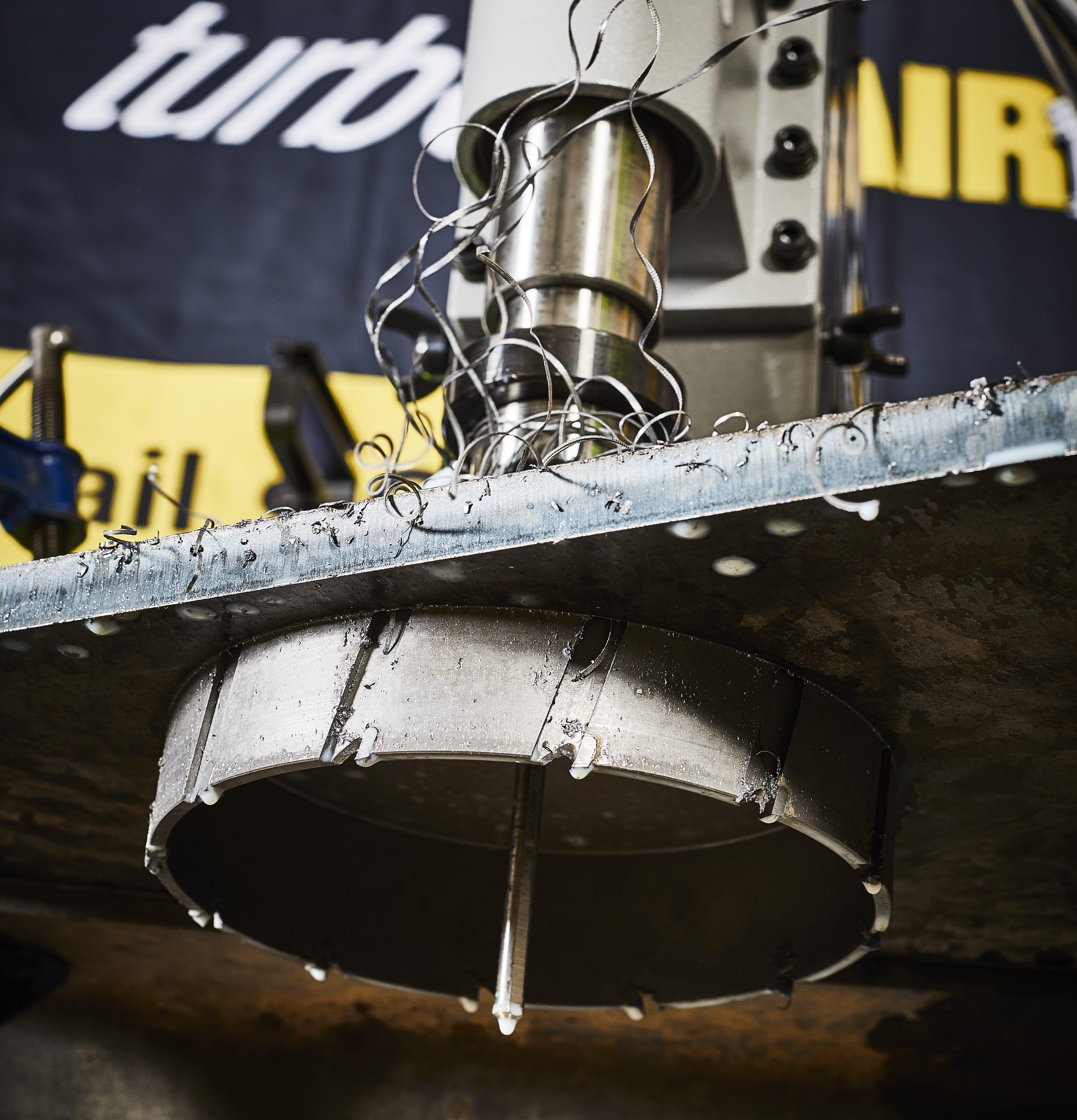

Designed to solve the most challenging of applications, the Magbeast HM200T (MagBeast® 5) offers a commanding 2850W, high torque motor that delivers maximum power to produce an incredible 200mm cutting capacity.
Why the Magbeast HM200T (MagBeast® 5)?
Magbeast HM200T (MagBeast® 5)SPECIFICATIONS
| Model | Magbeast HM200T (MagBeast® 5MT) |
| Spindle | MT5 |
| Arbor Bore | 1-1/4” |
| Weight | 52kg |
| Max Stroke | 330 mm |
| Cutter Capacity | 200mm Ø |
| Twist Drill Capacity | 52mm Ø |
| Countersink Capacity | 110mm Ø |
| Tapping Capacity | M52 |
| Reaming Capacity | 52 mm Ø |
| Motor | 2850W |
| RPM | 4 Multi Speeds 40/60 90/130 170/240 380/545 RPM |
| Height min/max | 730 / 955 mm |
| Length x Width | 455 x 280 mm |
| Magnetic Base L x W | 295 x 140 x 70 mm |
| Magnet Deadlift | 2300 kg on 1” Plate (26,800 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage/ Part no | 110 V – DRILL-HM200T/1 ~ 240 V – DRILL-HM200T/2 |
| Shipping Weight | 70 kg |
| Shipping Dimensions | 790 x 490 x 240 mm |
Optional Accessory - Ultra XL Pipe Attachment Kit for use with the Magbeast HM200T (MagBeast™ 5)
NEW INNOVATION! Specially designed to adapt the largest of machines in JEI’s range, making it now possible to cut holes up to 200 mm diameter, or make threads up to M52 in pipes with the Magbeast HM200T (MagBeast™ 5MT).
- For use on pipes between 150 mm - 500 mm diameter as standard
- Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18)
- Ideal for use with JEI models; PRO122T, HM140T, PRO152T & HM200T (MB5)
- Suitable for large magnetic drilling machines with magnet base 150 mm Wide
Want to make sure the Magbeast HM200T (MagBeast® 5) is right for you? Speak to our specialist solutions team today.
