Cutter Adaptors
A versatile solution for using cutters in magnetic drilling machines
Specifically designed to enable the use of any annular broaching cutter in all makes and models of magnetic drilling machines.
DOWNLOADS:
JEI's cutter adaptors are a cost effective solution, enabling the use of all types of annular broaching cutters in all makes and models of magdrills.

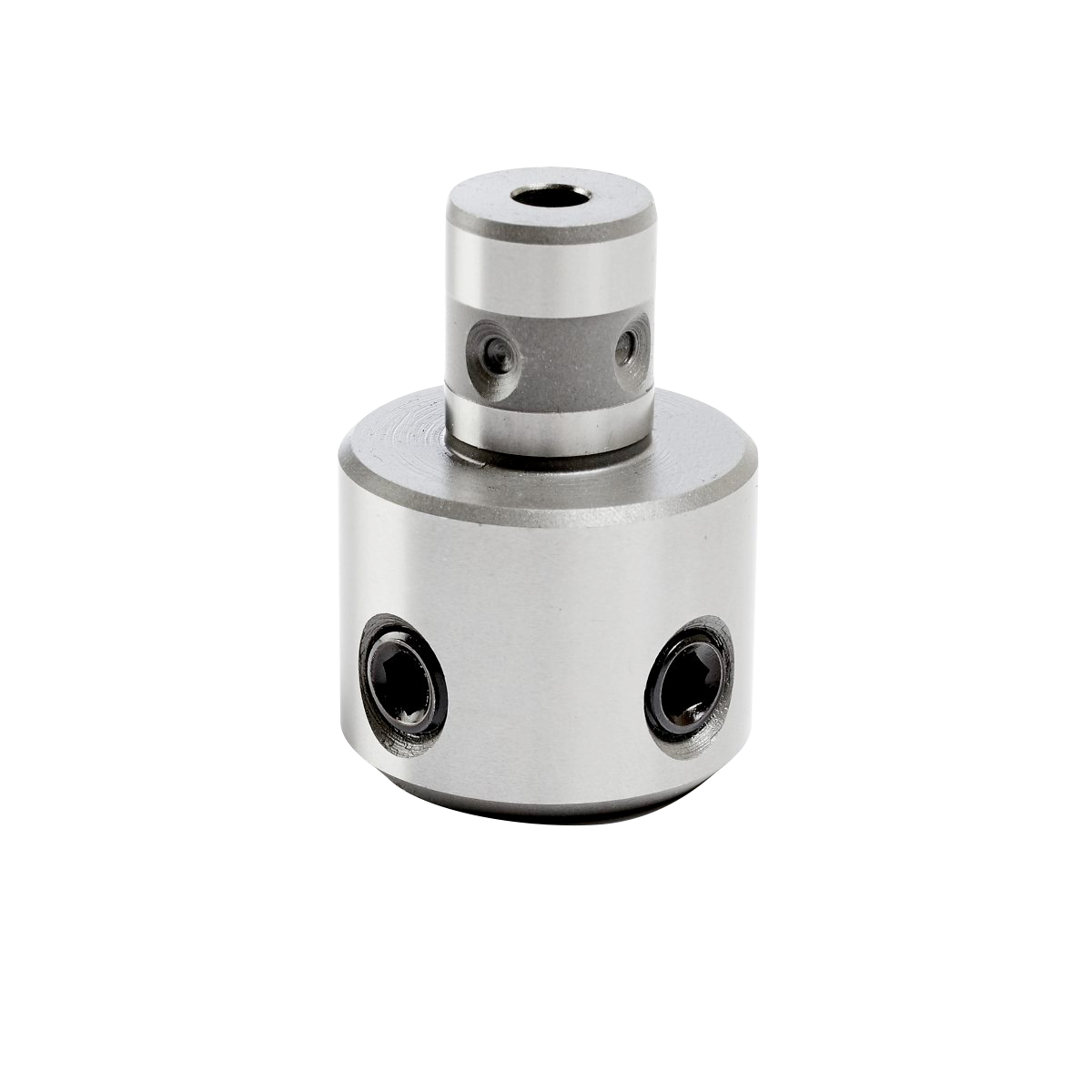

Fein Cutter Adaptor
JEI-AFEIN
- Converts standard (19mm shank) broaching cutters for use in a Fein quick in machine arbor.

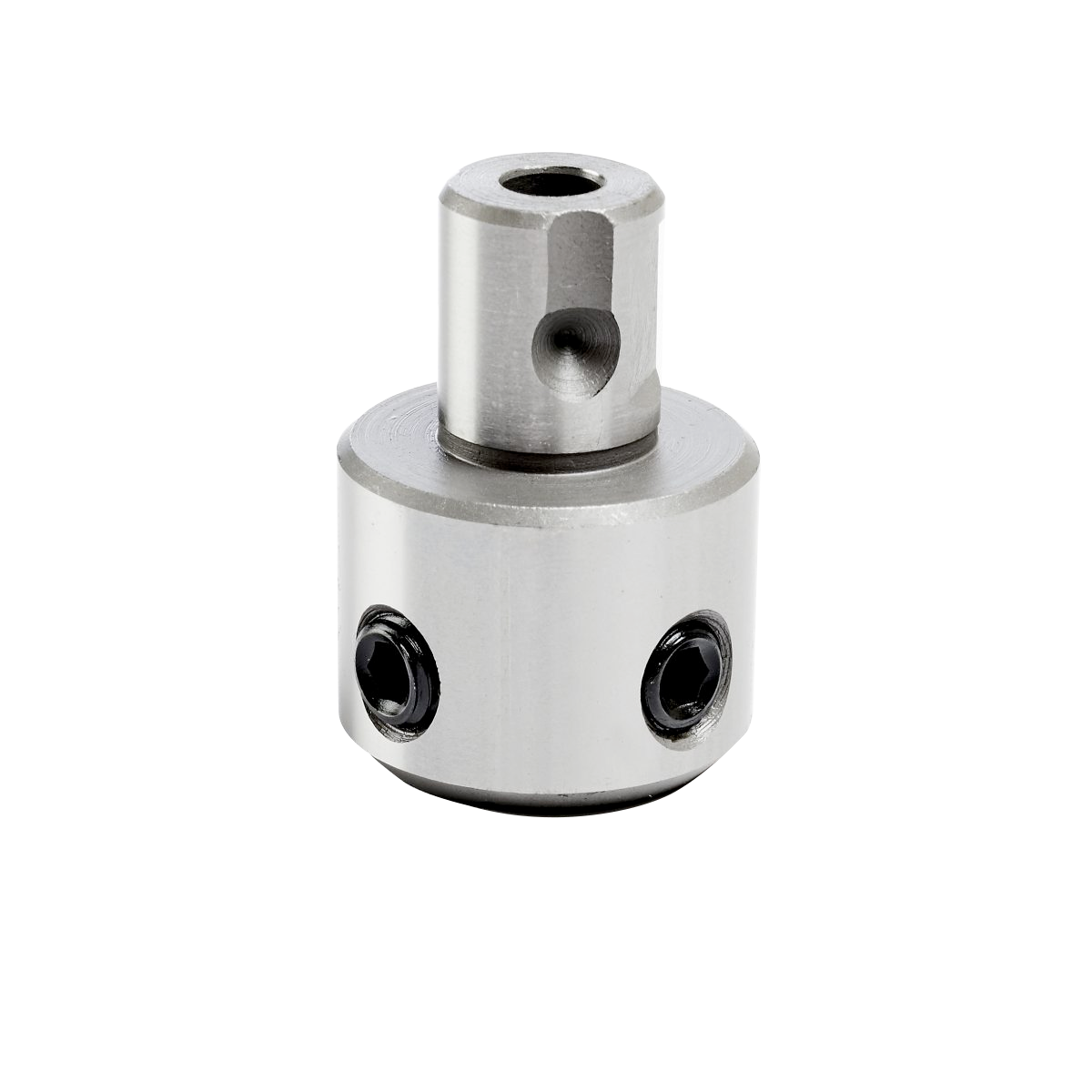

Nitto Cutter Adaptor
JEI-A/N8
- Converts standard (19mm shank) broaching cutters for use in a Nitto magnetic drilling machine. Note - not required for JEI Turbo™ Tough TCT cutters as these are fitted with a "universal" shank fitting.
- Use with Pilot Pin = Dia Ø 7.98 mm. If required for use with HSS cutters please contact the JEI office for technical support.

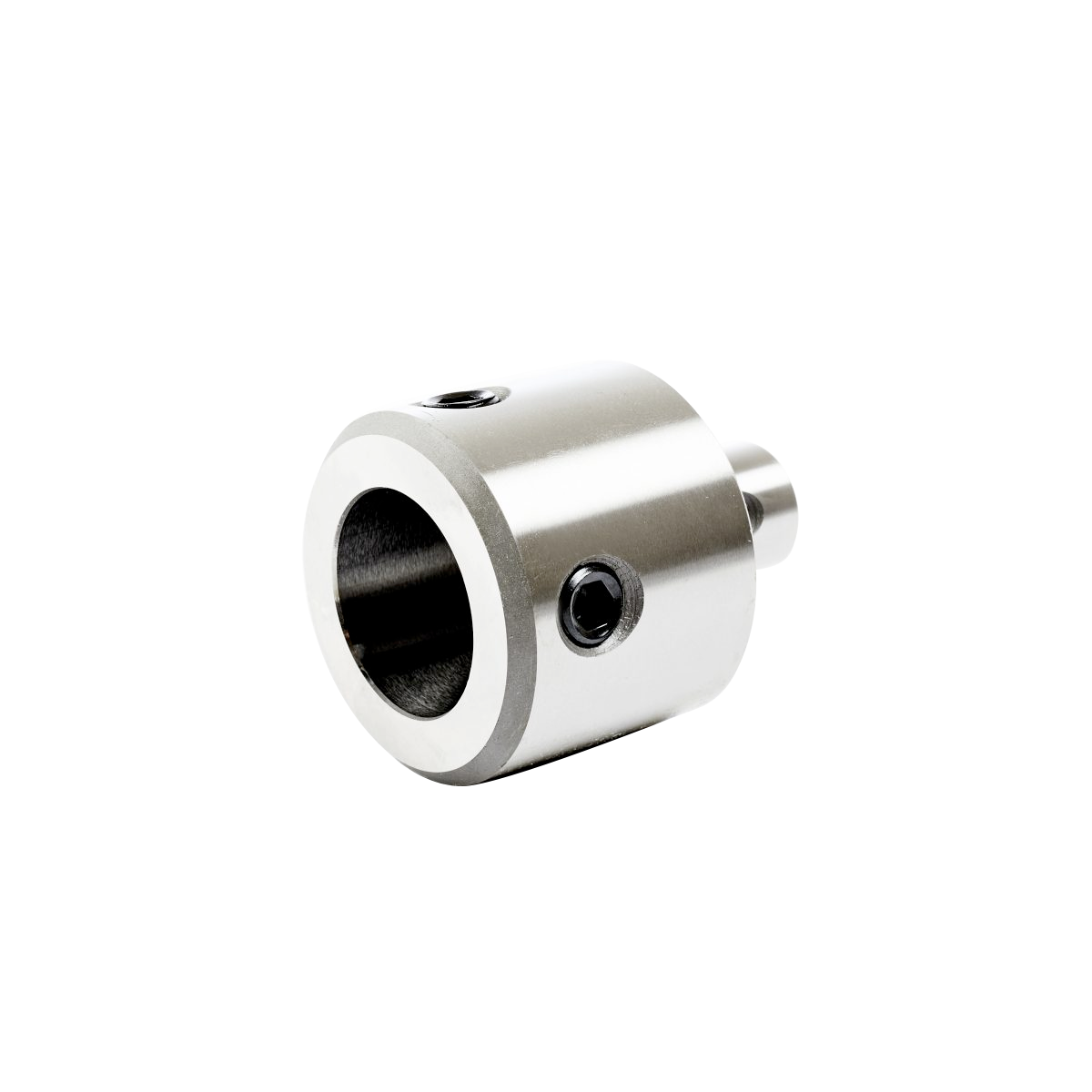

32mm Cutter Adaptor
JEIADPT-19/32
- Maximum recommended cutter diameter = 100 mm
- Extension length = 25 mm
- Place the larger 32mm cutter shank into the adaptor, then attach to a standard 19mm (3/4") shank machine cutter arbor, to increase the versatility of both the cutter and the machine.
- Provides the added benefit of the ability to use the larger diameter (1-1/4") shank cutters with an arbor extension, to increase the overall cutting reach.

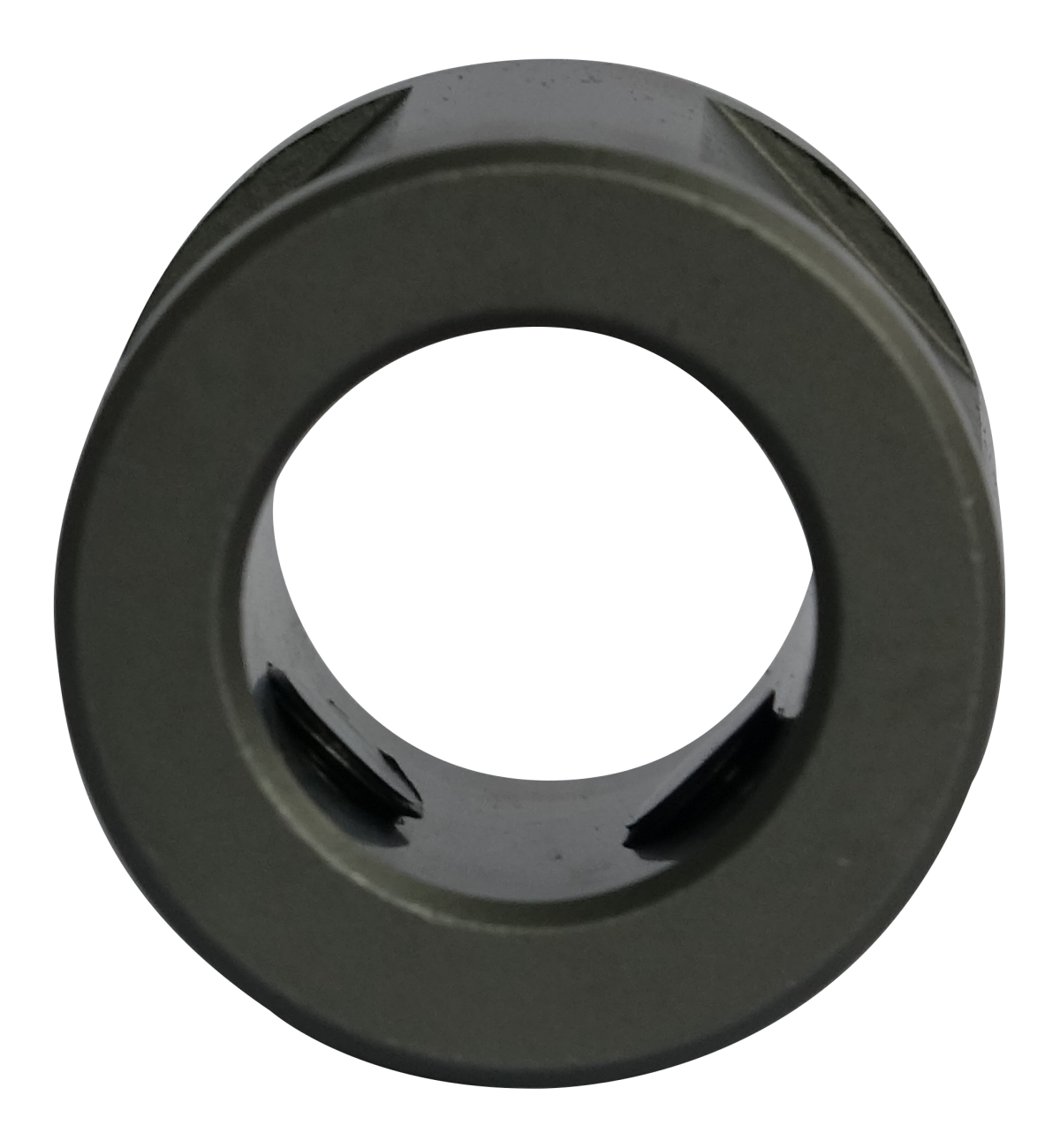

19mm Cutter Adaptor
JEIADPT-32/19
- Reduction ring, to convert 1-1/4" drive cutter arbor to accept 19mm shank cutters.

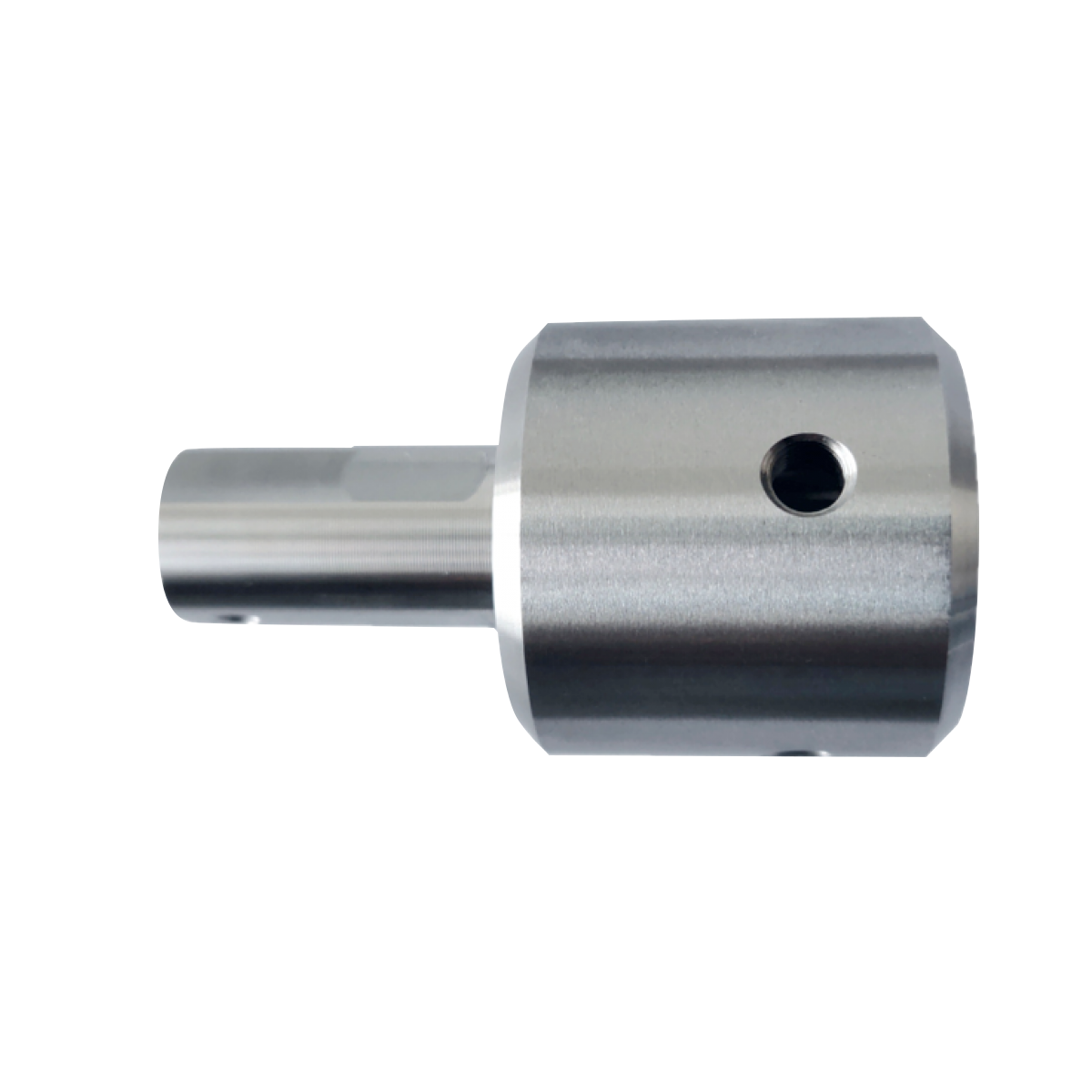

1/2" Cutter Adaptor
JEIADPT-1/2
- Cutter adaptor solution for using annular broaching cutters (19mm shank) in a hand drill with 1/2" chuck.
